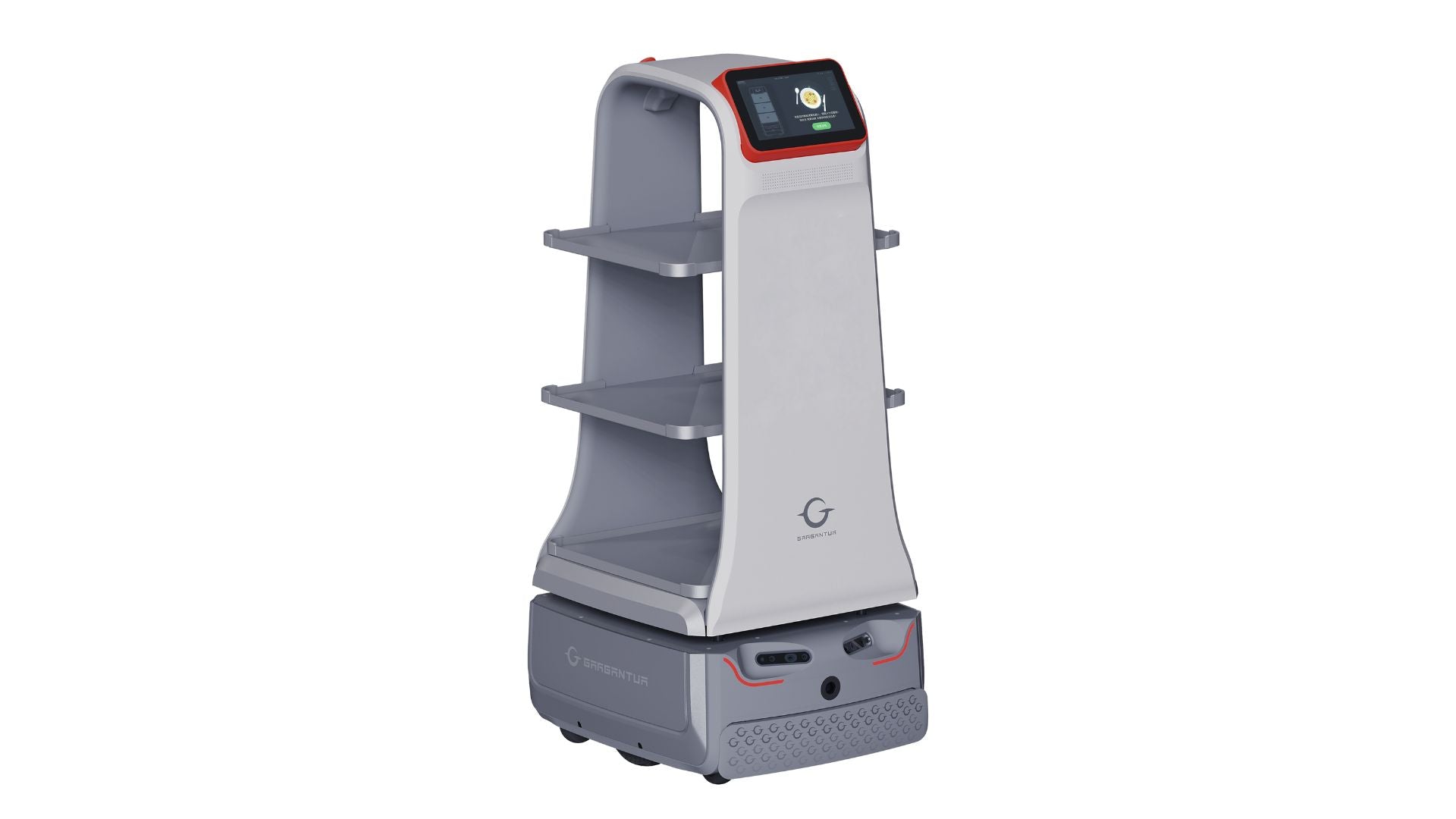

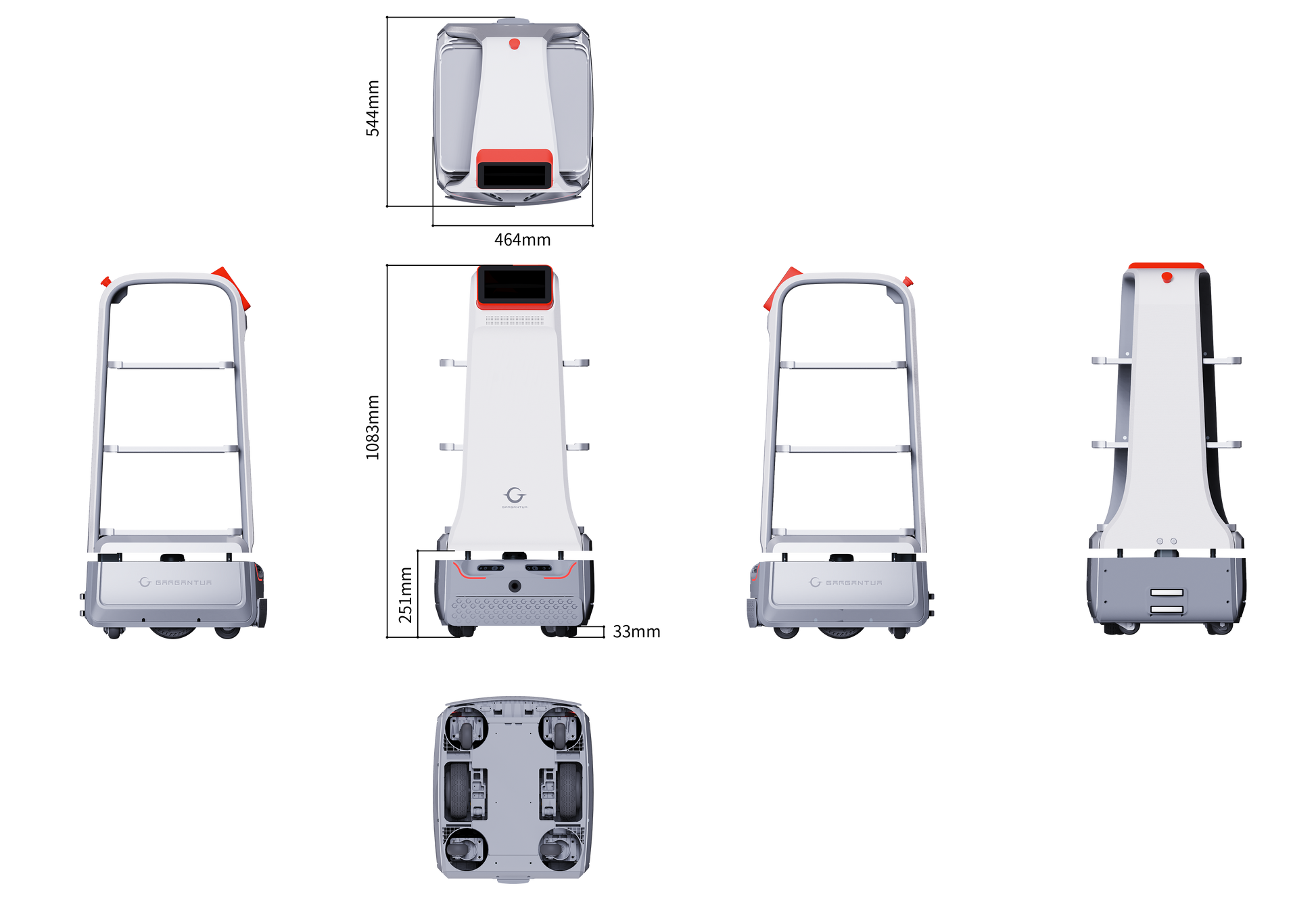

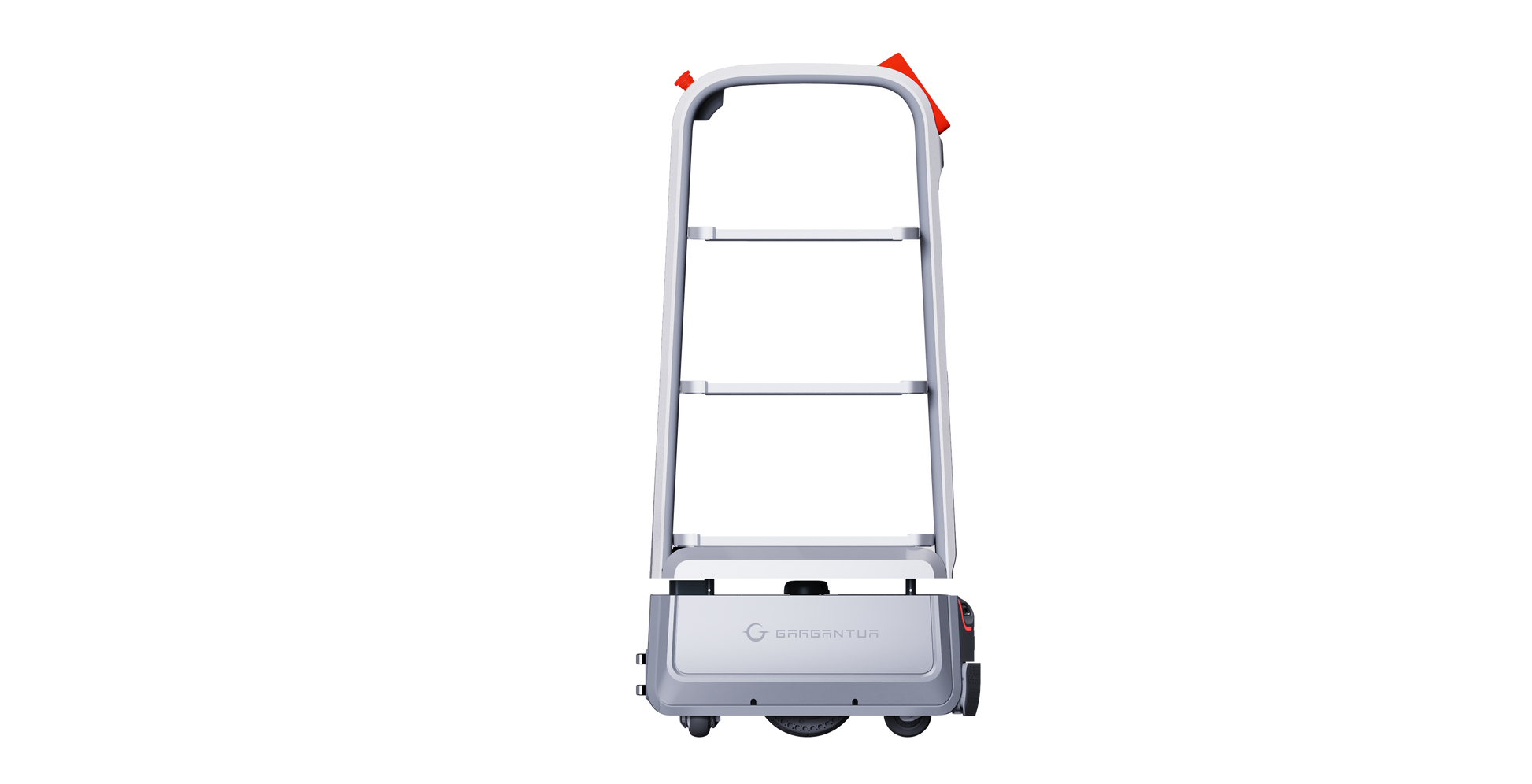

The F3 Restaurant Service Robot, is a cutting-edge commercial smart delivery robot designed to revolutionize restaurant and banquet service operations. By automating food delivery tasks, it helps reduce labor costs and significantly improve service efficiency. Equipped with a comprehensive suite of intelligent features, the F3 robot supports multi-point food delivery, one-touch tray return, call-for-delivery functionality, seamless multi-robot collaboration, smart obstacle avoidance, and autonomous recharging. By integrating smart robotic services into their operations, restaurants can not only streamline workflows but also build a modern and innovative brand image—enhancing their overall competitiveness in the market.
Specification
Specification
Details
Dimensions
545 x 466 x 1088 mm (L x W x H)
Minimum Passage Width
750 mm
Max Mapping Area
500 x 500 m
Screen
8-inch, 1280 x 800 resolution
Trays
3-tier Anti-skid Tray
Top Tray: 426 x 356 x 215 mm (L x W x H)
Middle Tray: 426 x 380 x 240 mm (L x W x H)
Bottom Tray: 396 x 404 x 240 mm (L x W x H)
Max Load Capacity: 30 kg
Material
Galvanized steel and aluminum alloy frame, ABS housing
Sensors
- Two depth sensors (working in tandem)
- Magnetic sensors
- Bumper sensors (2 units, min detection range: 1 cm)
- Lidar sensors (2 units, detection range: 0.4 m – 2 m)
