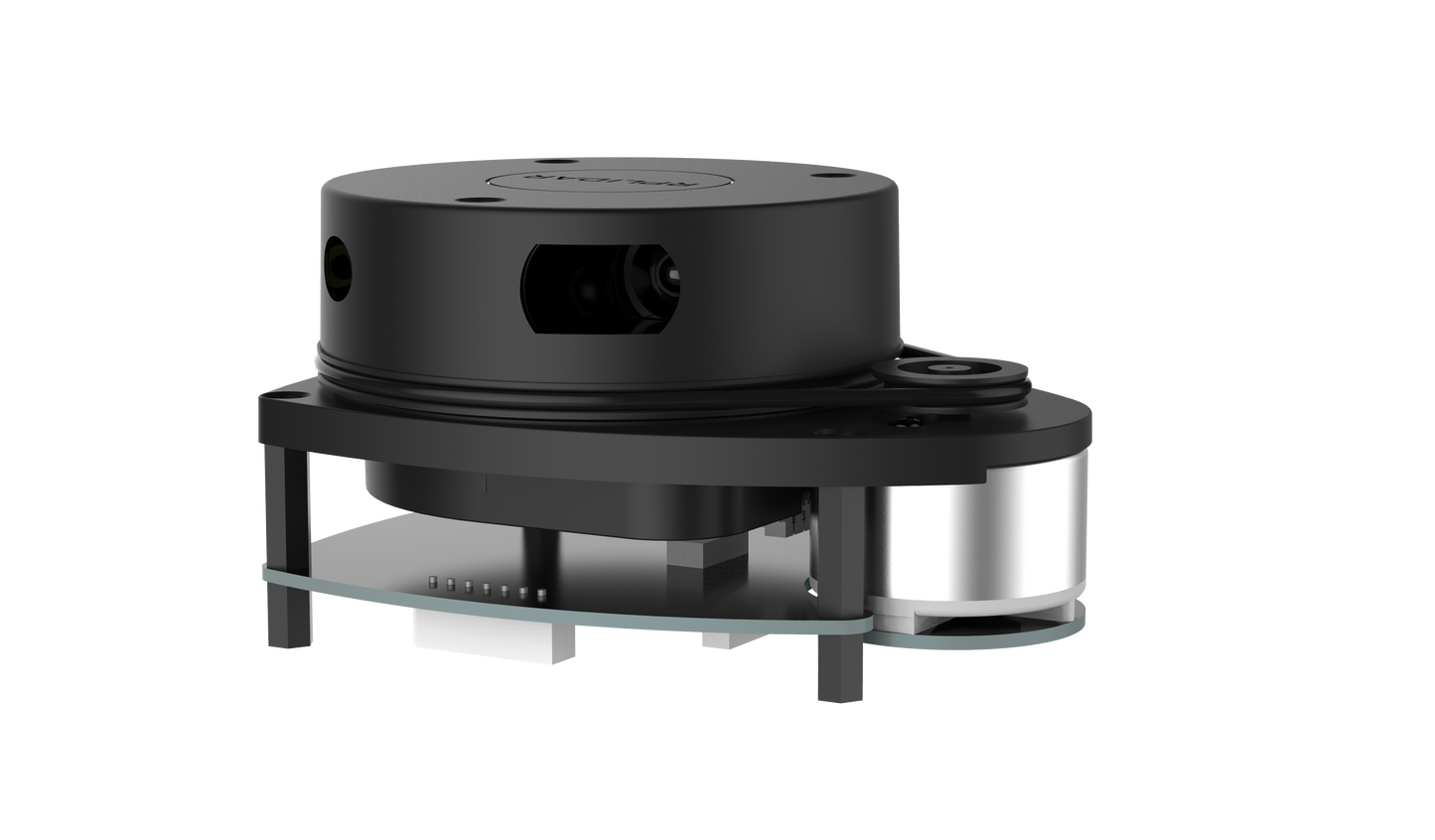

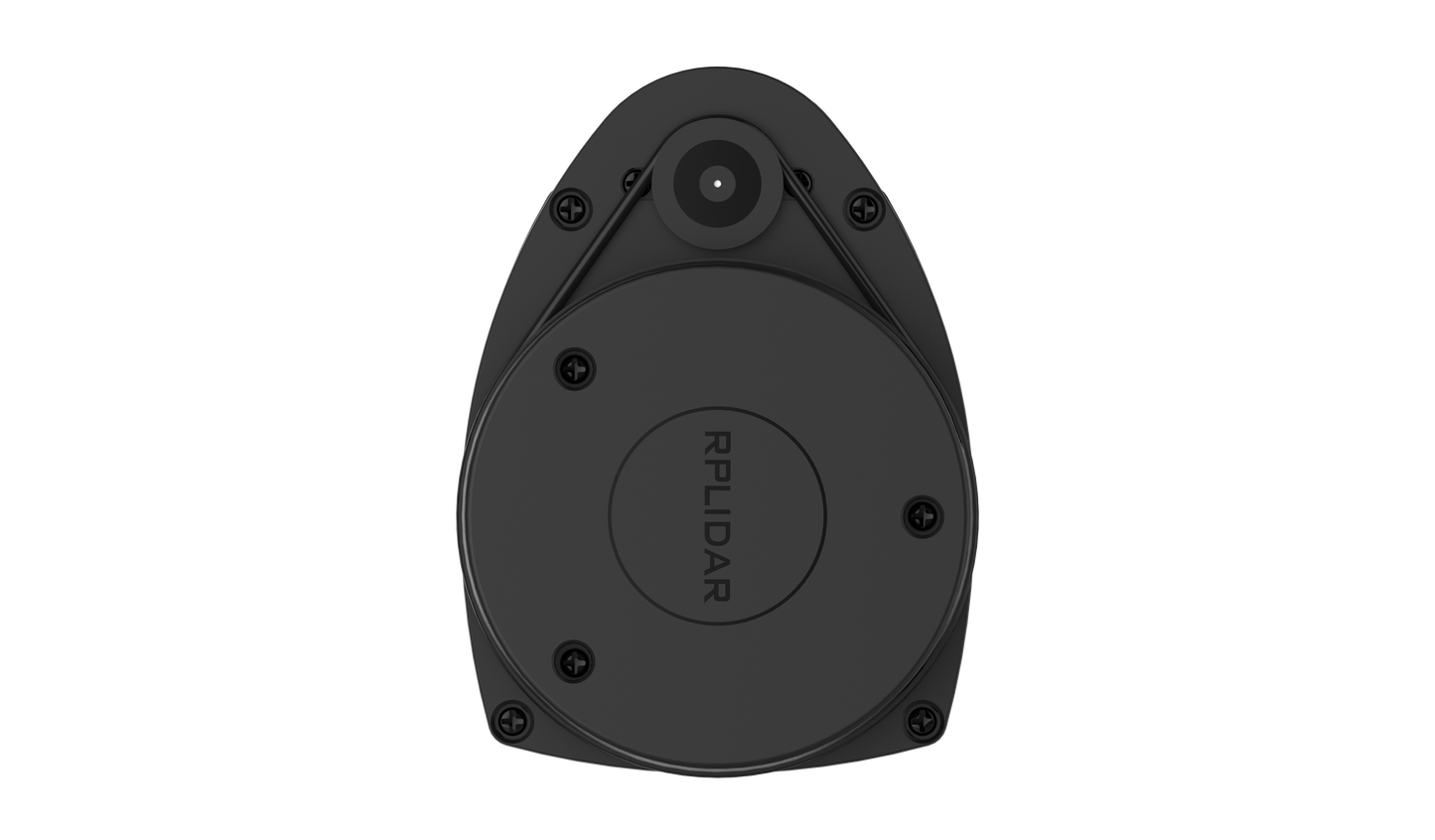

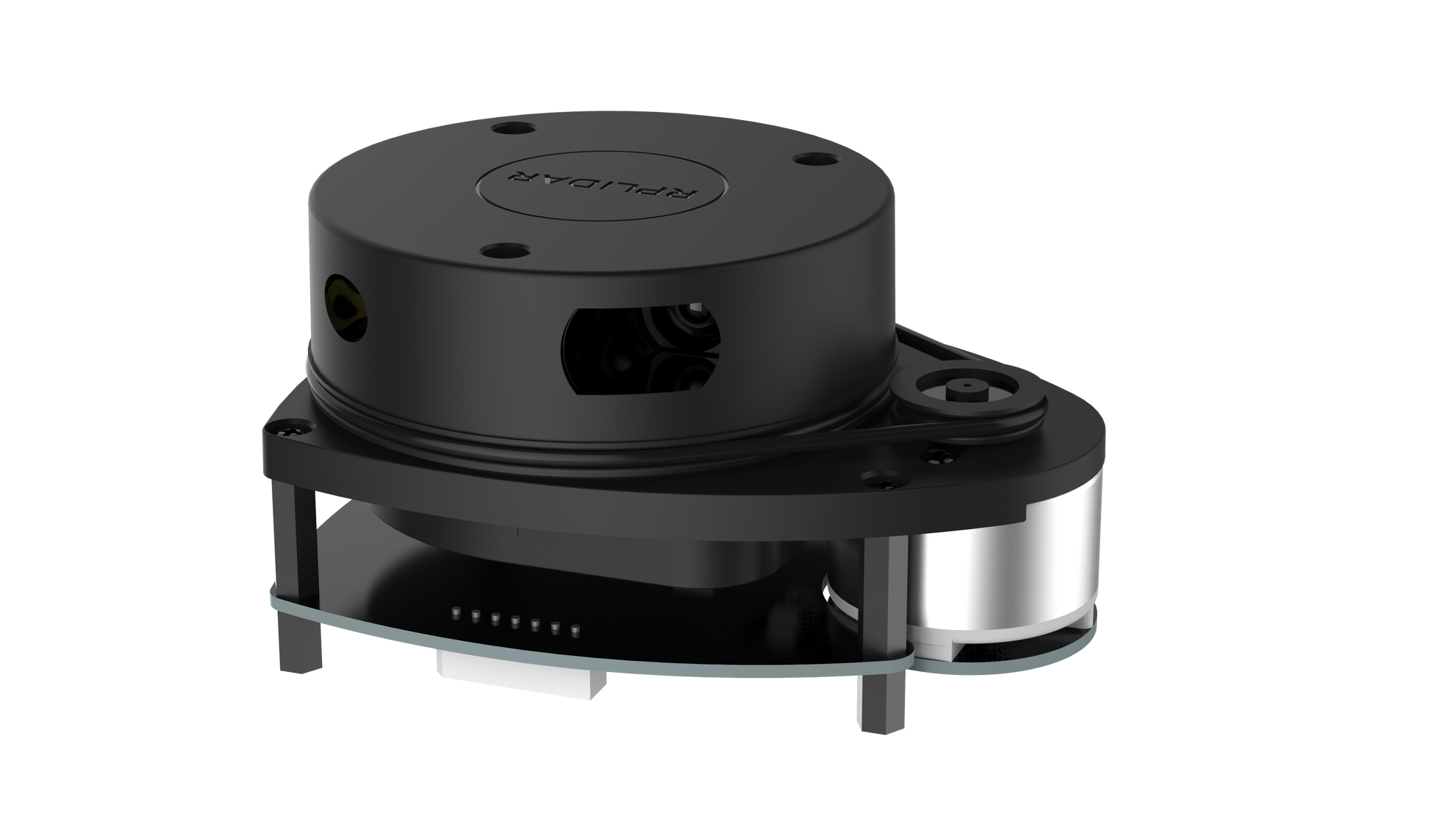

RPLIDAR A1M8

Product Description

RPLIDAR A1 is an affordable 2D laser scanning (LIDAR) system capable of full 360-degree scanning. It supports a maximum range of up to 12 meters (6 meters for models like the A1M8-R4), generating precise 2D point cloud data for applications such as mapping, localization, and environmental modeling. Utilizing laser triangulation technology, the RPLIDAR A1 delivers accurate distance measurements. It operates at a standard scanning frequency of 5.5 Hz with 1450 sample points per rotation, and can be configured to scan at up to 10 Hz. This versatile LIDAR is suitable for both indoor and shaded outdoor environments, provided it is not directly exposed to strong sunlight.

Technical Specification

Key Features

• Performs over 8,000 distance measurements per second for fast and accurate data collection
• 360° omnidirectional LiDAR scanning for comprehensive environment coverage
• Industry-leading 8,000 Hz sampling rate, setting the standard in cost-effective LiDAR solutions
• OPTMAG original design enhances durability and extends product lifespan
• Adjustable scan rate ranging from 2 Hz to 10 Hz to meet various performance needs
• Plug-and-play functionality for easy setup and integration

Application

• Robot SLAM (Simultaneous Localization and Mapping)
• Automated Guided Vehicles (AGVs)
• Service robots
• Driverless car parking systems
• Security and surveillance
• Surveying and mapping

Component Included

• 1 X RPLIDAR A1（PWM motor driver embedded）
• 1 X USB Adapter
• 1 X RPLIDAR A1 communication cable
