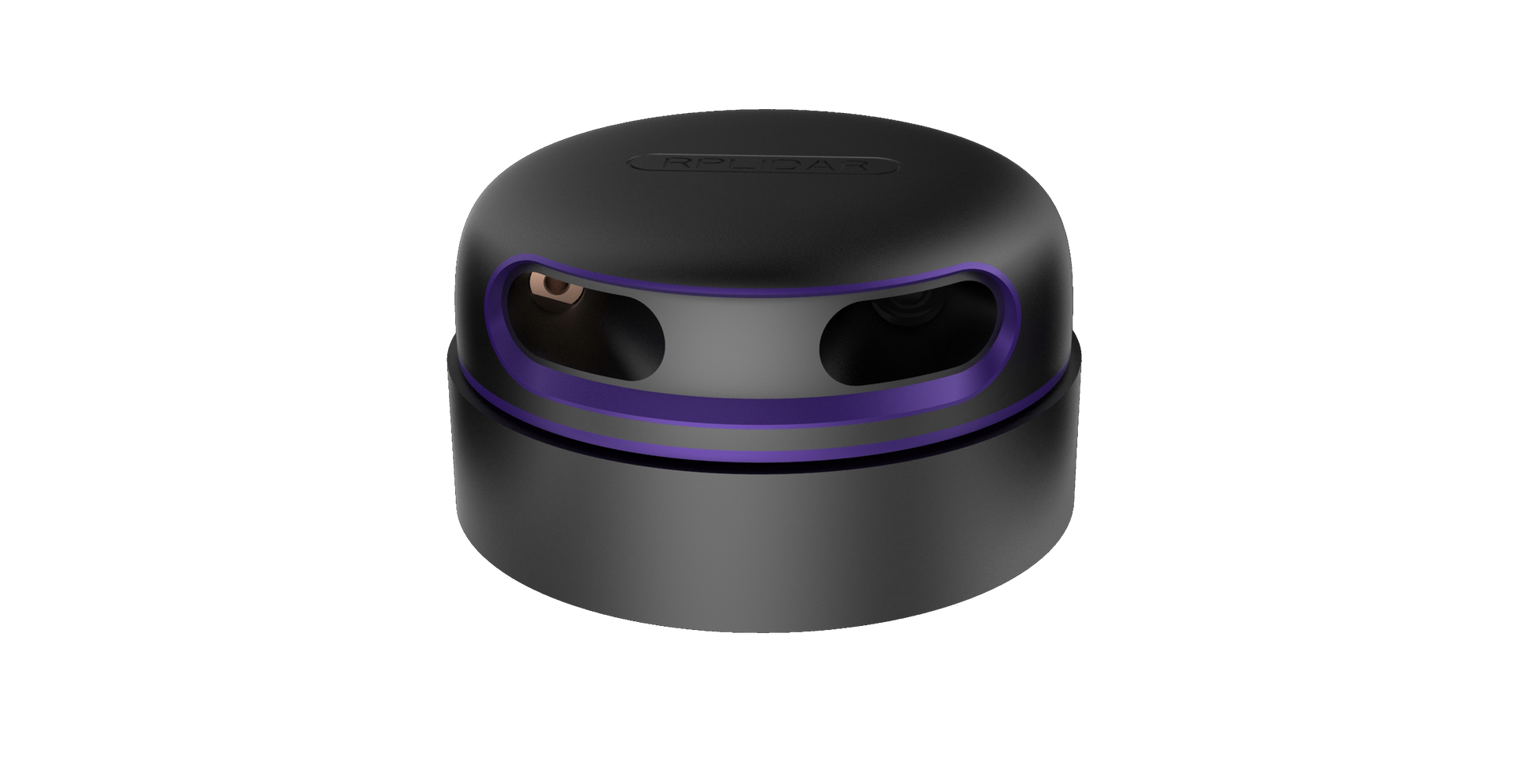

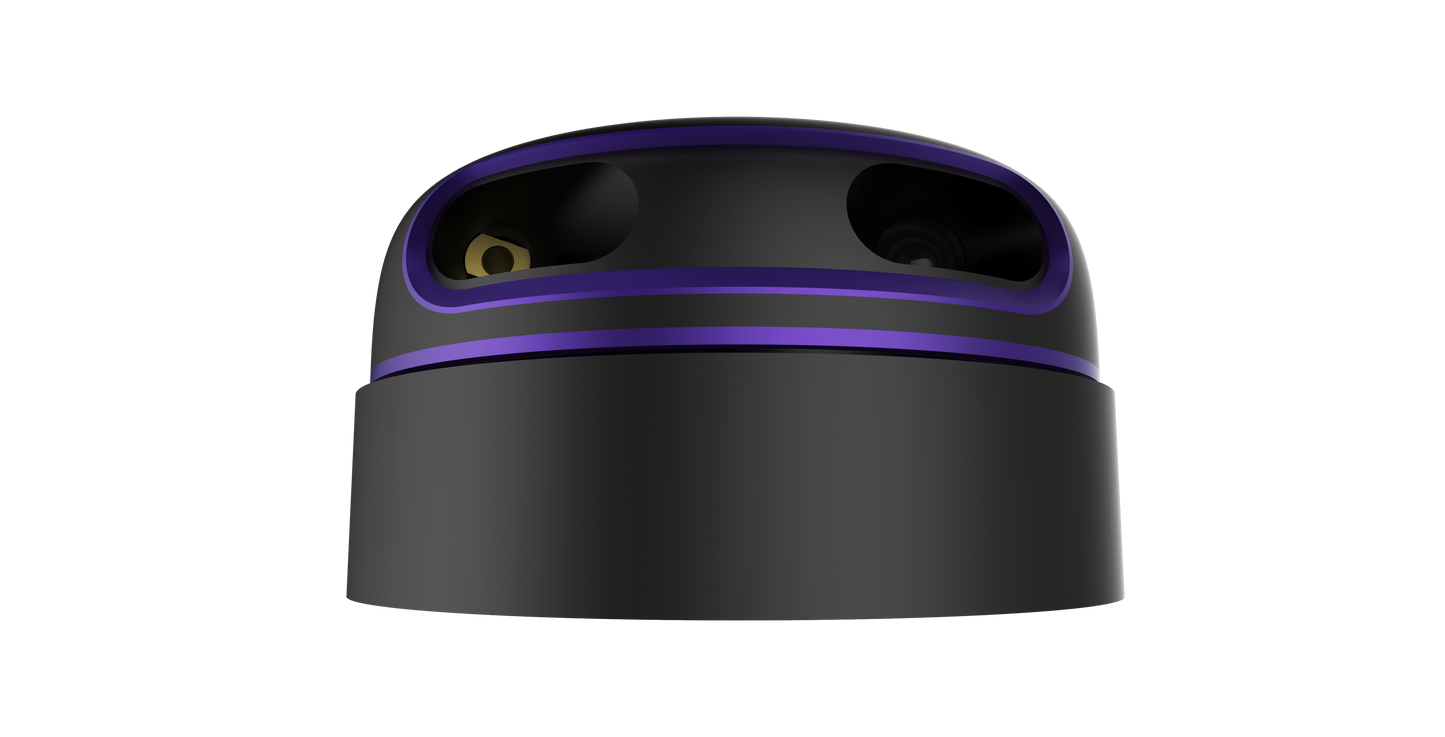

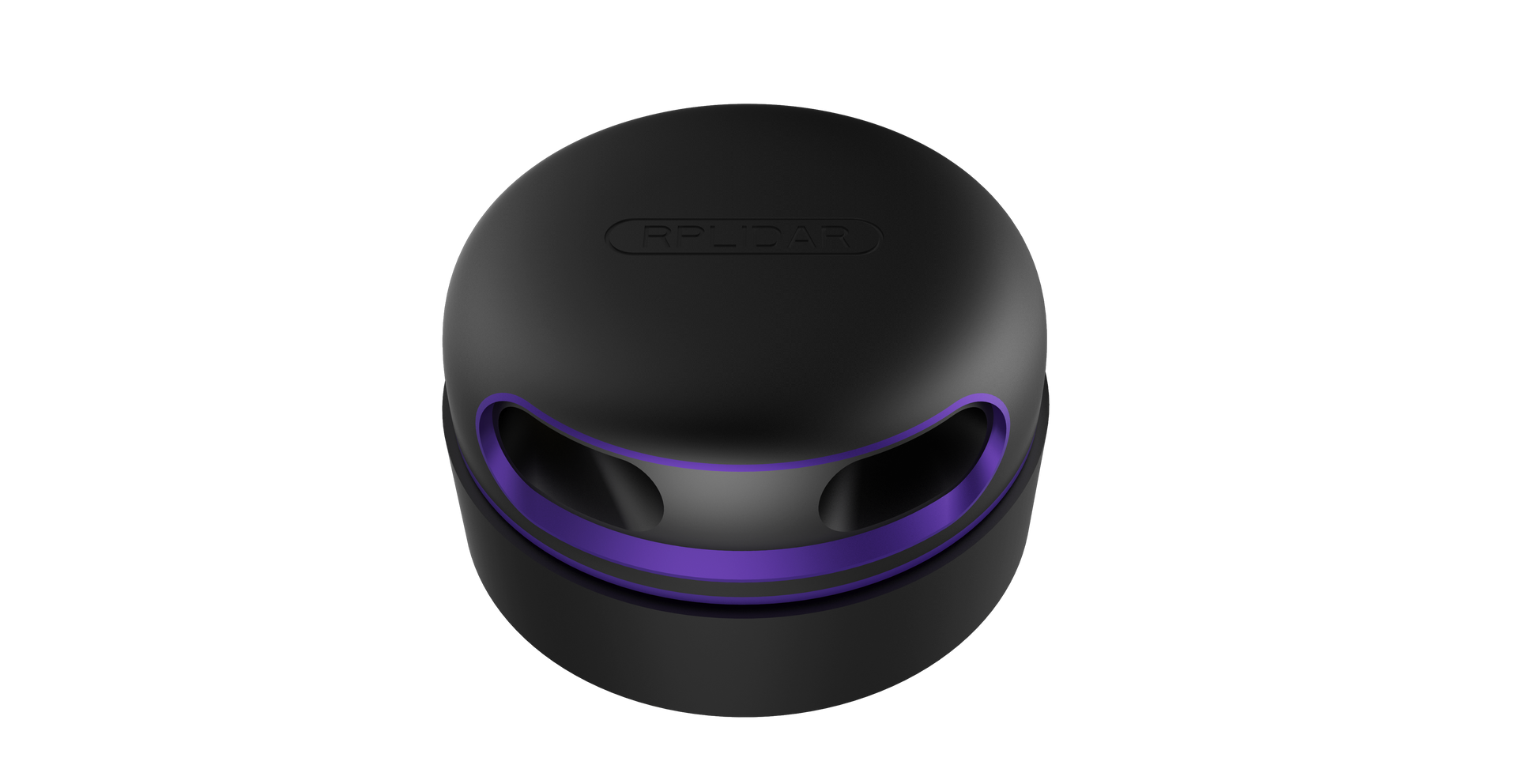

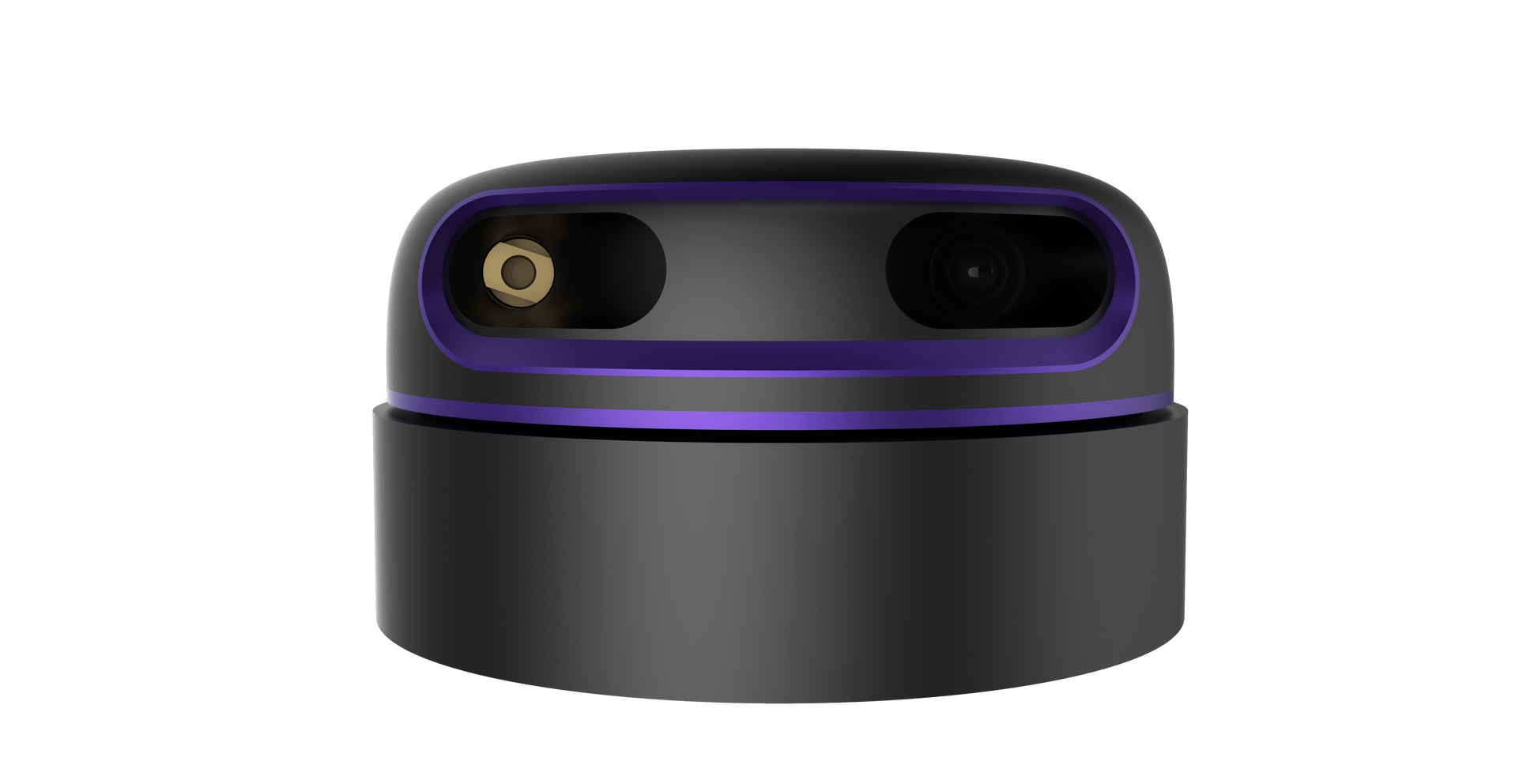

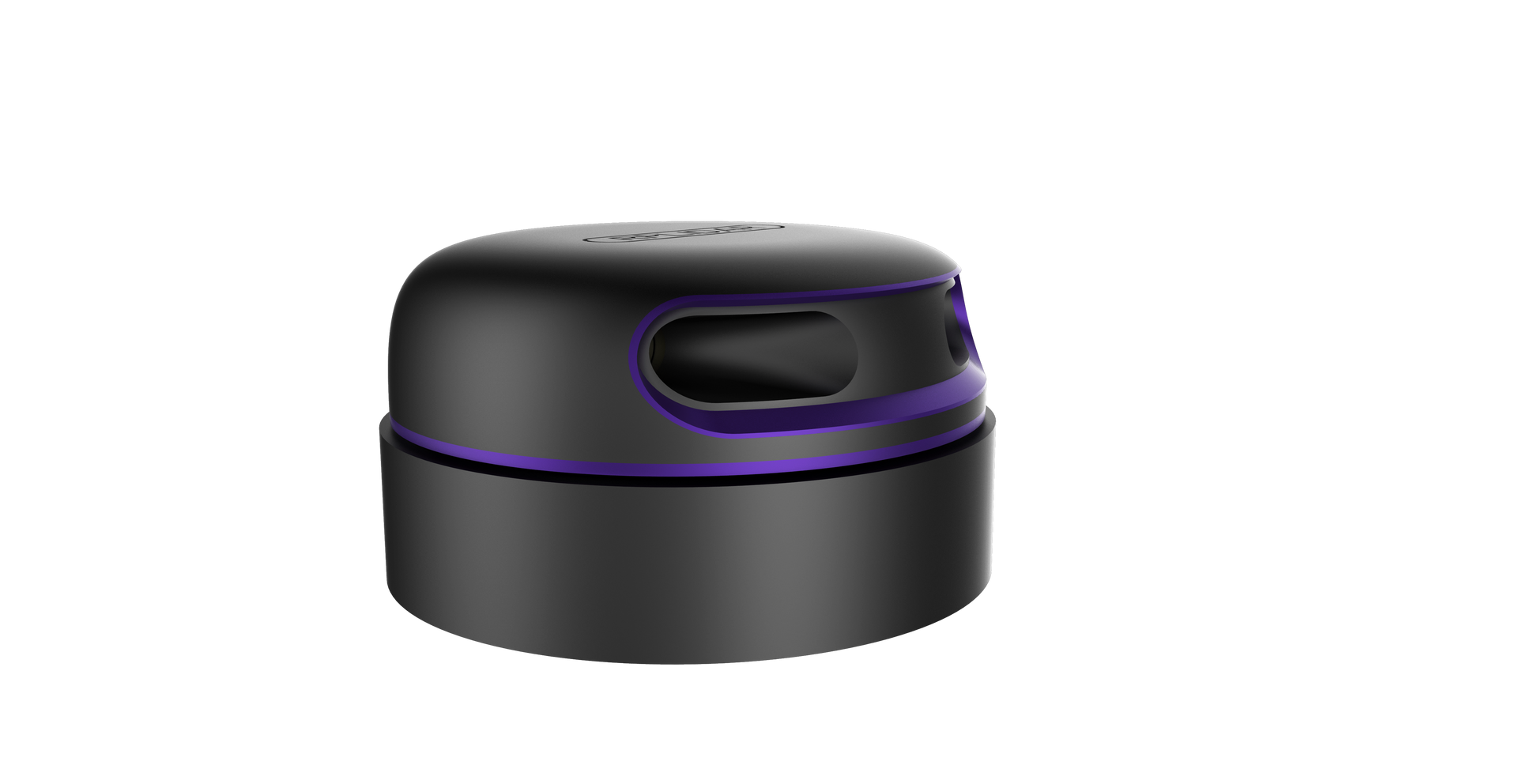

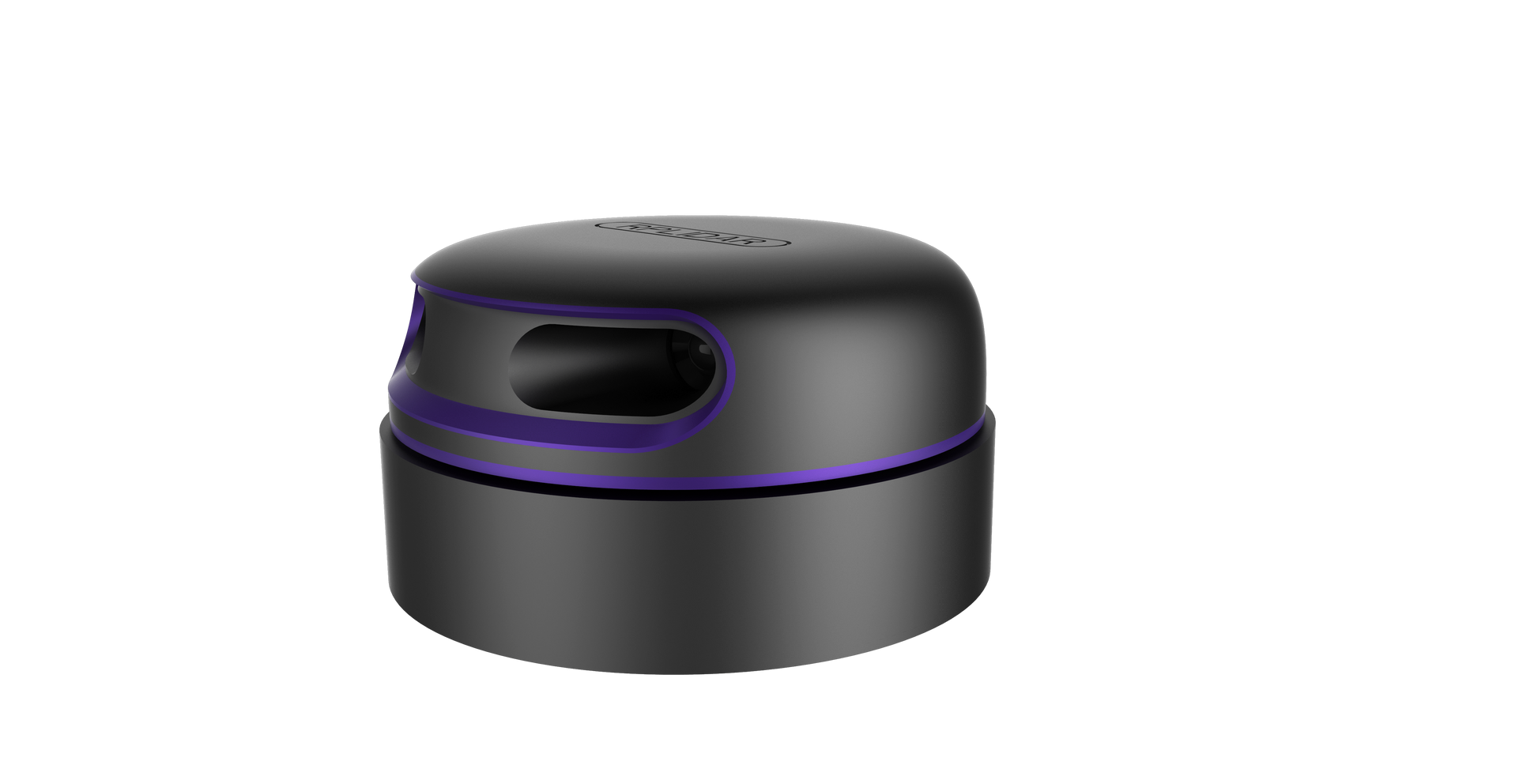

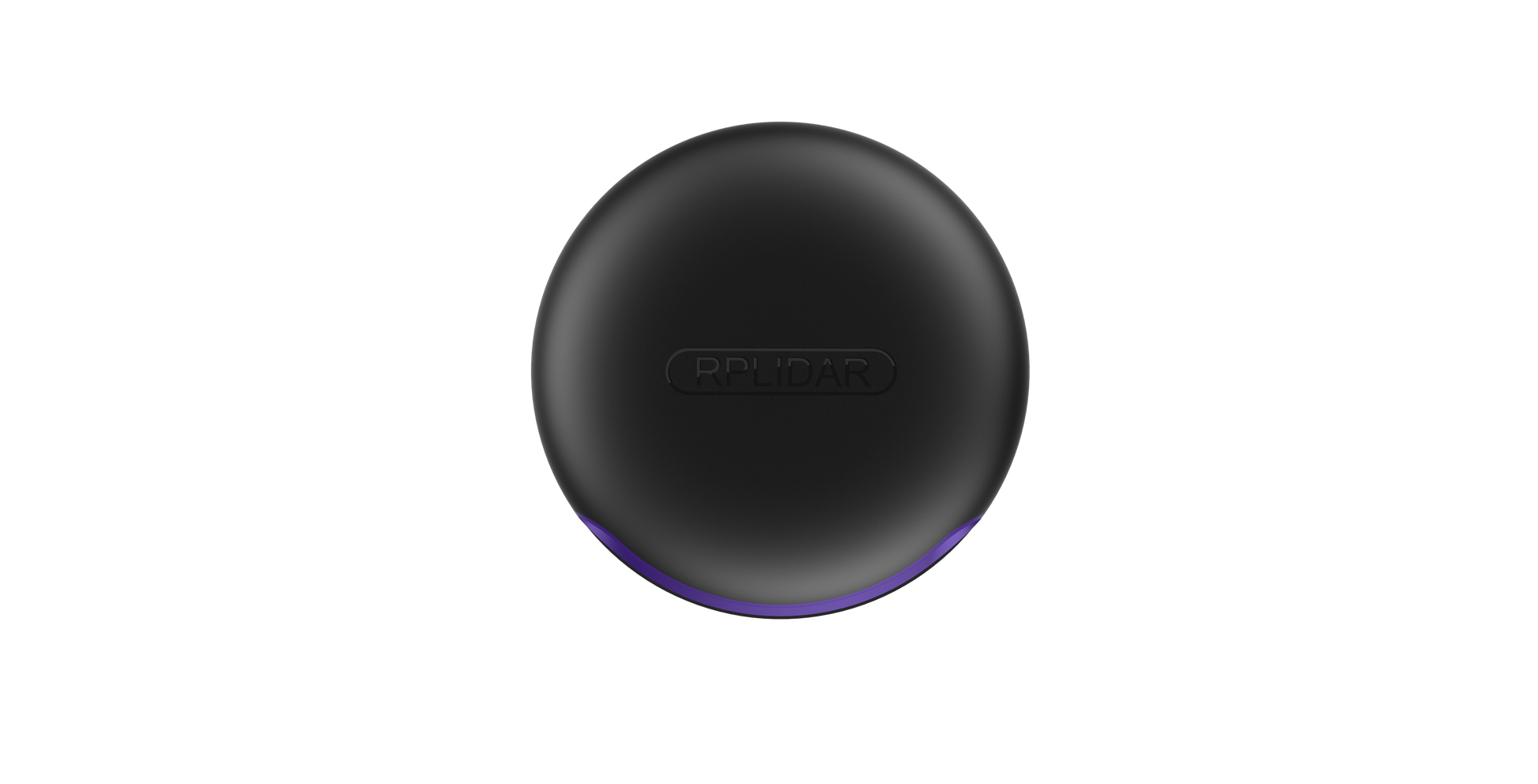

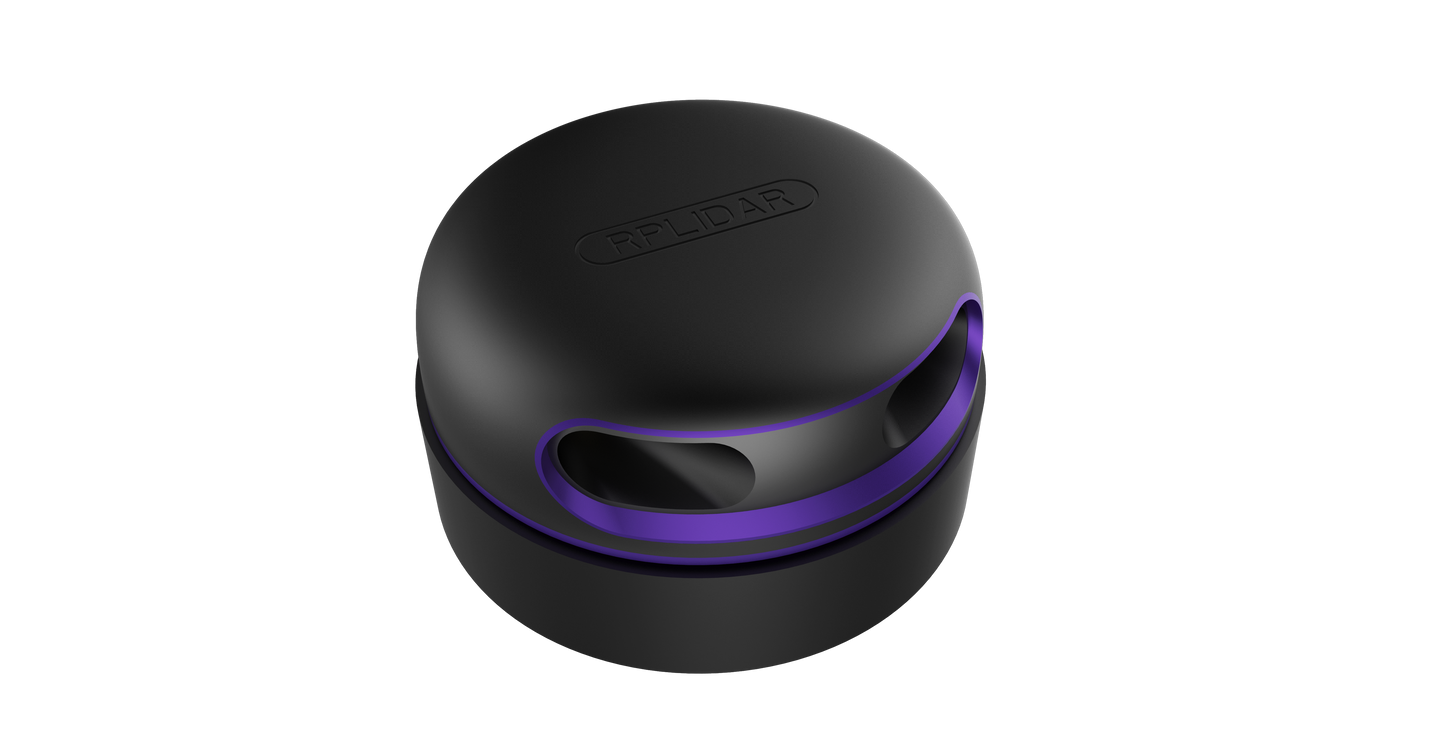

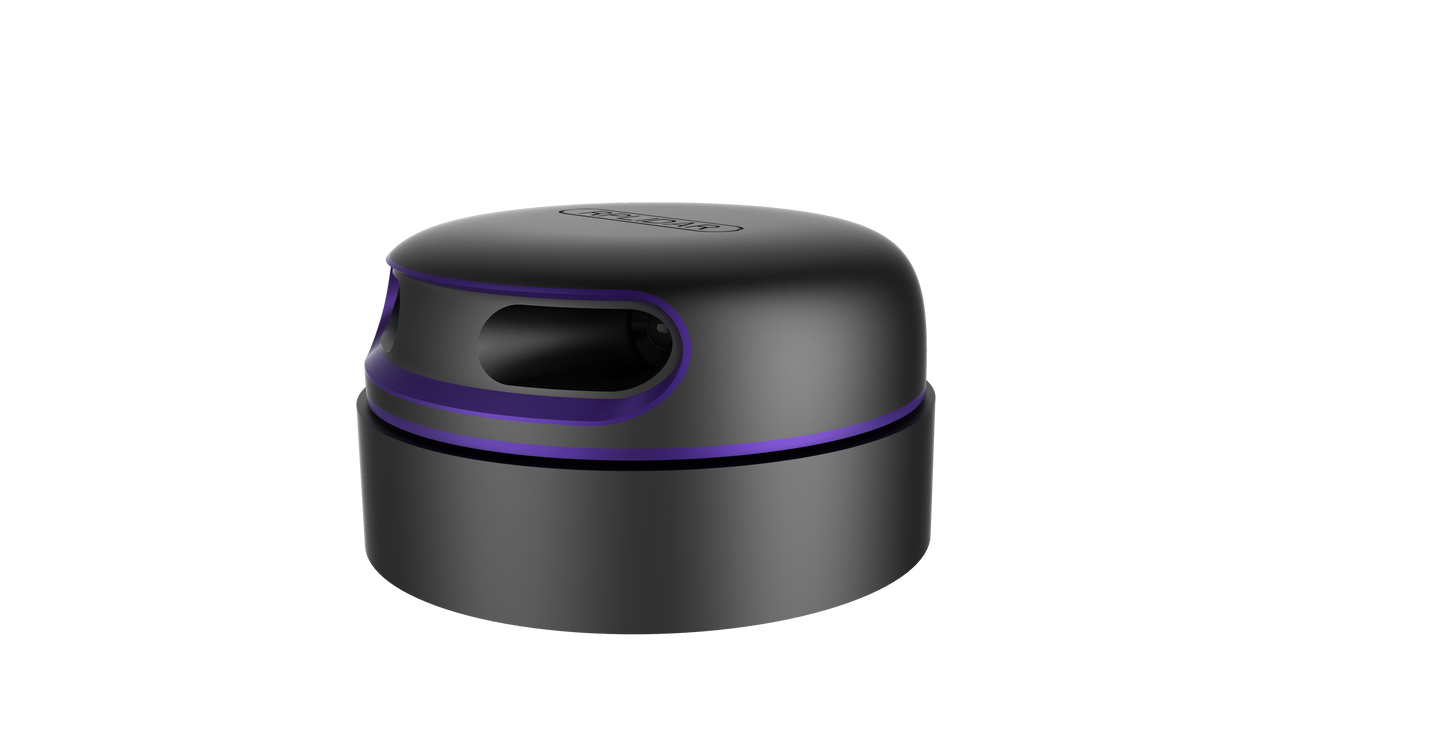

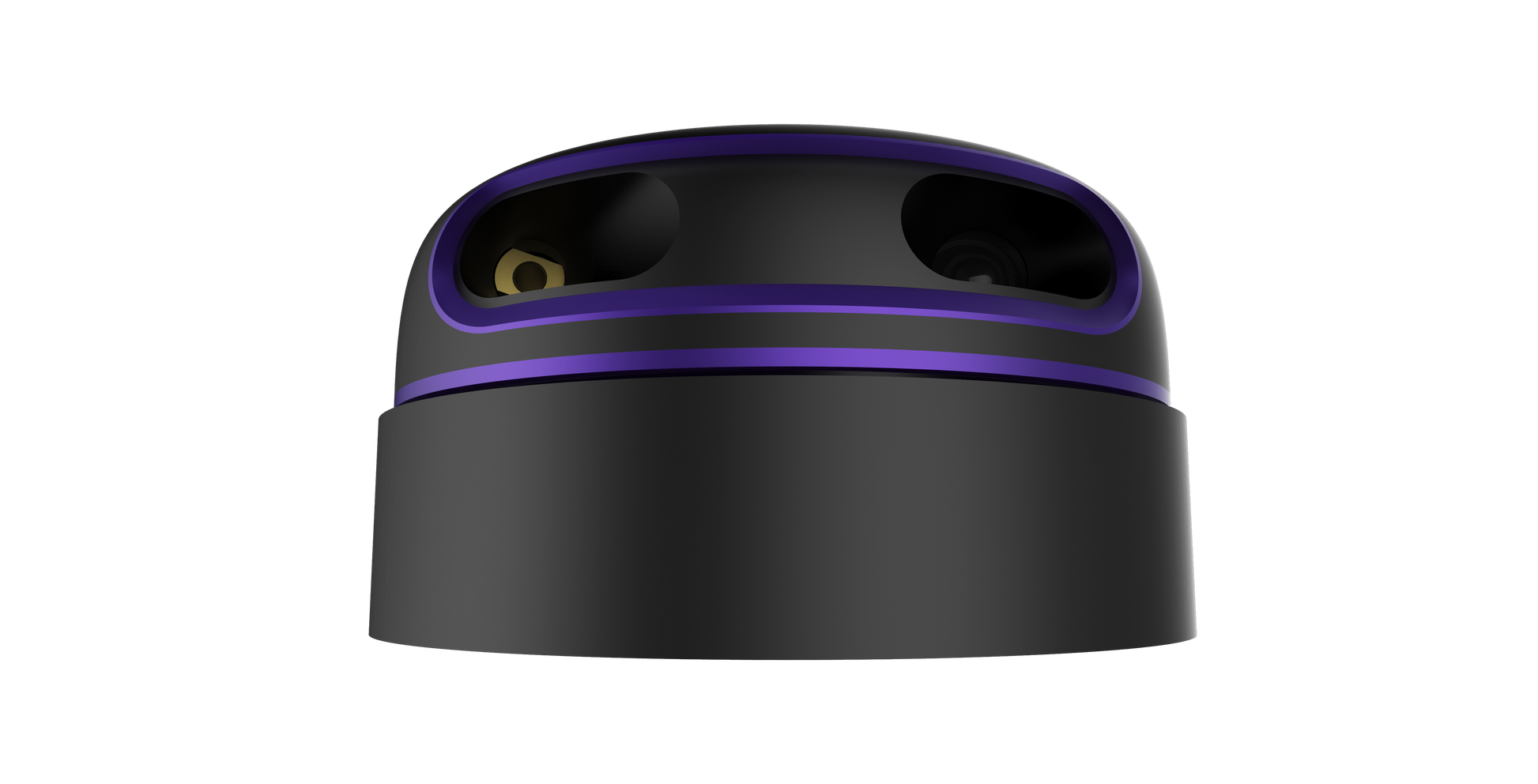

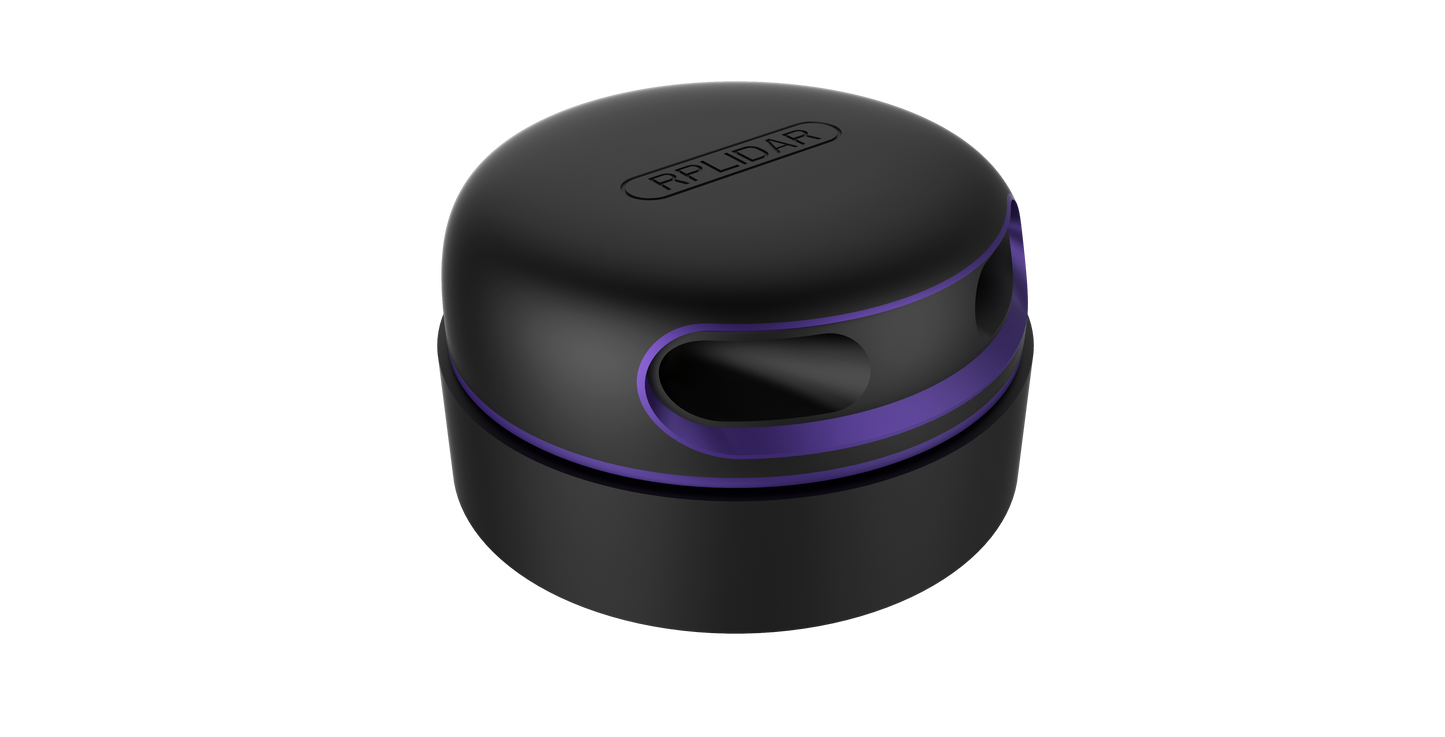

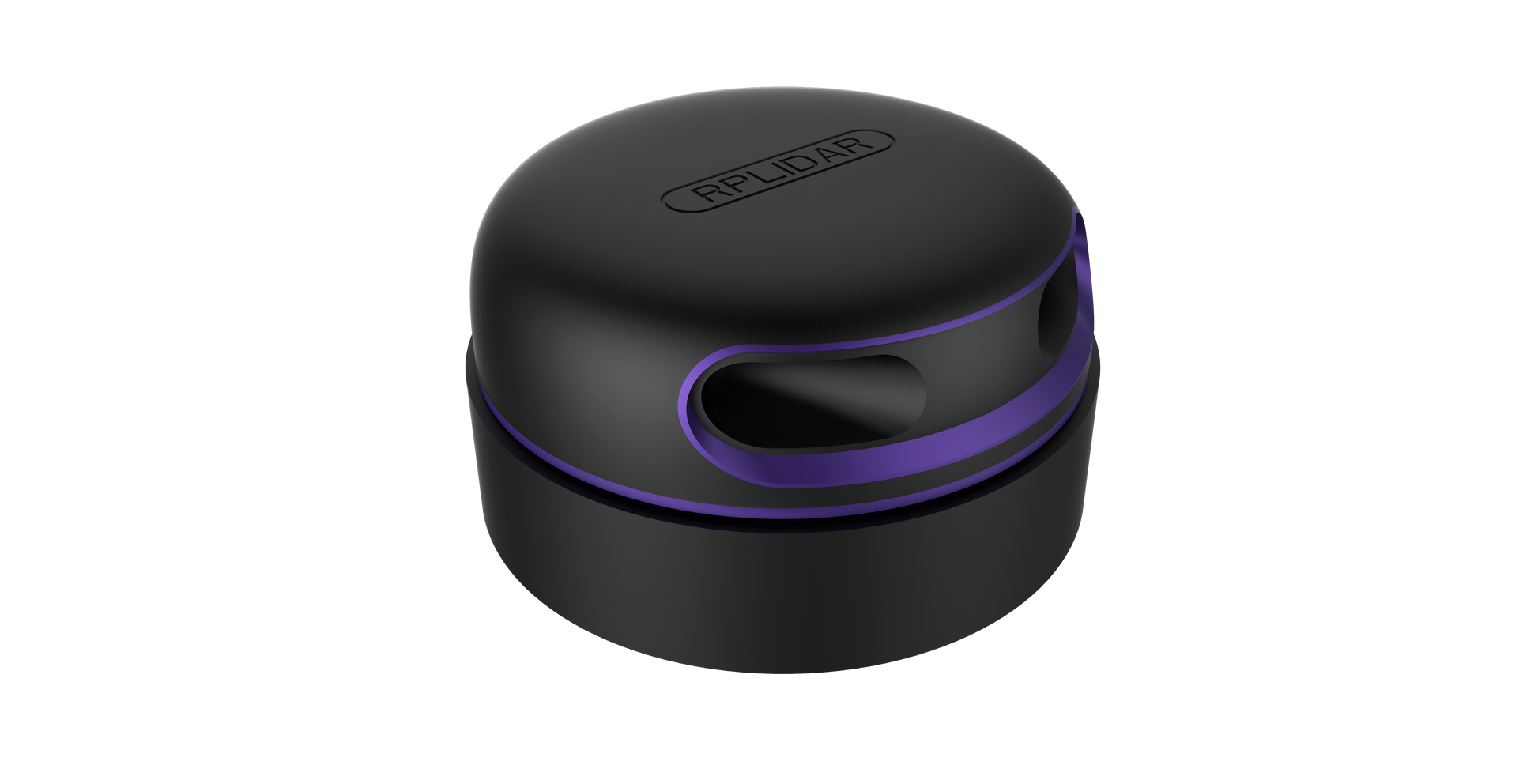

RPLiDAR A3M1

Name: RPLiDAR A3M1
Brand: My Store
Price: 599.00 USD
Availability: OutOfStock

$599.00 USD

Sale Sold out

Quantity

Product Description

The RPLIDAR A3M1 is a next-generation, cost-effective 2D 360° laser scanner designed for high-performance indoor and outdoor mapping applications. Capable of capturing up to 16,000 samples per second, it offers enhanced accuracy and fast mapping capabilities with a ranging distance of up to 25 meters. Powered by SLAMTEC’s patented OPTMAG technology, it overcomes the lifespan limitations of traditional LIDAR systems, ensuring stable long-term operation.

The A3M1 features two operating modes: Enhanced Mode, optimized for maximum range and performance in indoor environments, and Outdoor Mode, designed to resist daylight interference for reliable operation under direct sunlight. It performs full 360° scans using a clockwise-rotating laser triangulation system, generating high-resolution 2D point cloud data for mapping, localization, and environment modelling.

With a typical scan rate of 10 Hz (adjustable from 5 to 15 Hz) and an angular resolution of 0.225°, the A3M1 adapts scanning precision dynamically based on its rotation speed. Compact at only 4 cm thick, it is ideal for integration into service robots and consumer-grade autonomous systems. Compliant with IEC-60825 Class 1 eye-safety standards, and requiring a simple power interface, the RPLIDAR A3M1 offers a reliable, efficient, and scalable solution for a wide range of robotics applications.

Specification

Category	Specification
Product	RPLIDAR A3
Dimensions (H × D)	41 × 76 mm
Scan Coverage	360° laser scanner
Angular Range	360°
Application Scenarios	Enhanced Mode: High performance for indoor environments (max range & sampling) Outdoor Mode: High reliability for both indoor and outdoor use (resistant to daylight)
Detection Range	Enhanced Mode: 25 m (white object), 10 m (dark object) Outdoor Mode: 20 m (white object), TBD (dark object)
Sample Rate	Enhanced Mode: 16,000 samples/sec Outdoor Mode: 10,000 samples/sec
Scan Rate	15 Hz typical (adjustable between 10 – 20 Hz)
Angular Resolution	0.225°
Range Resolution	≤1% of range (≤12 m), ≤2% of range (12–25 m)
Accuracy	1% of range (≤3 m), 2% of range (3–5 m), 2.5% of range (5–25 m)
Communication Interface	TTL UART
Communication Speed	256000 bps
Output	UART Serial (3.3 V level)
SDK Compatibility	Supports former SDK protocols
System Voltage	5 V
System Current	450 – 600 mA
Power Consumption	2.25 – 3 W
Operating Temperature	0 – 40 ℃
