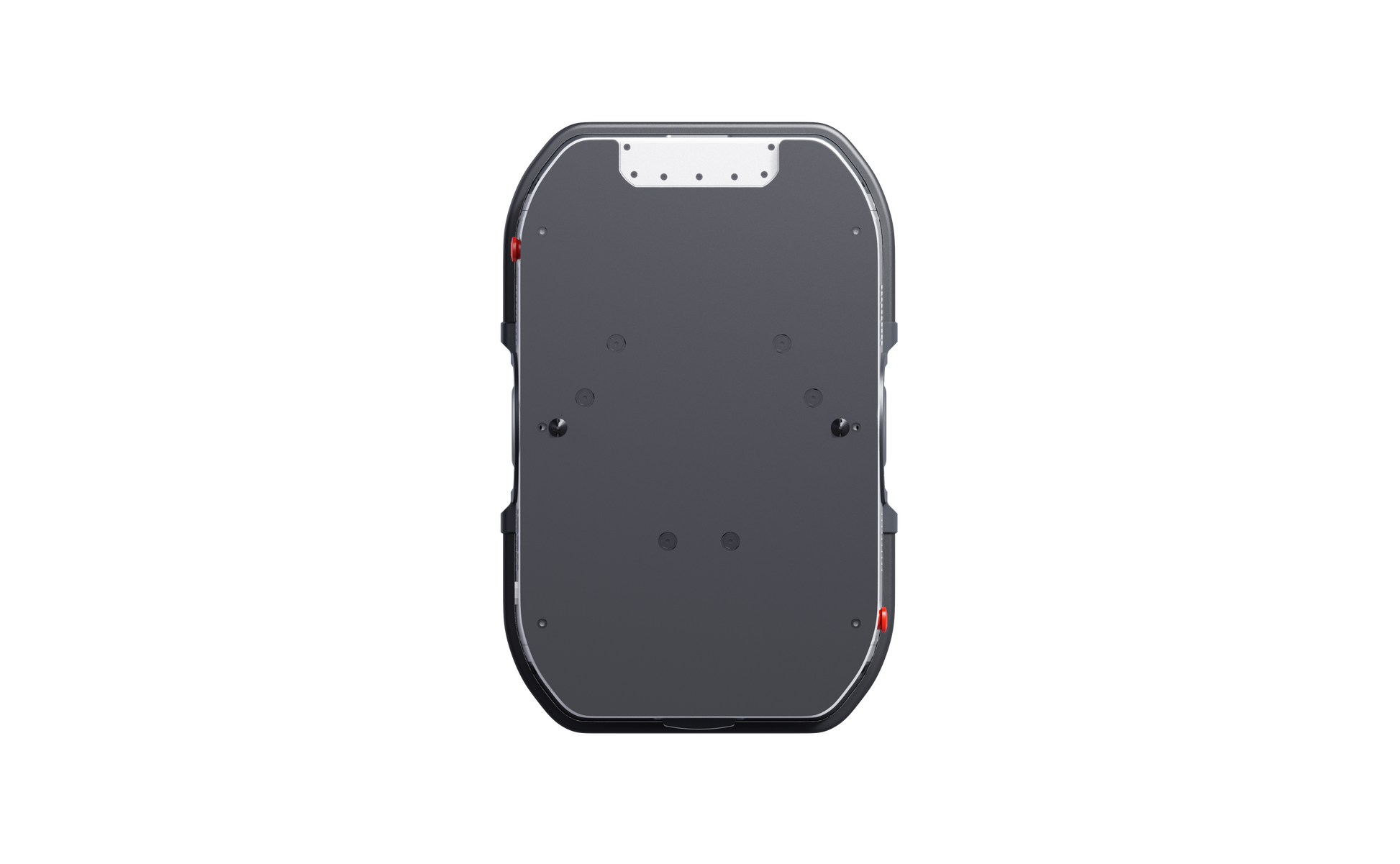

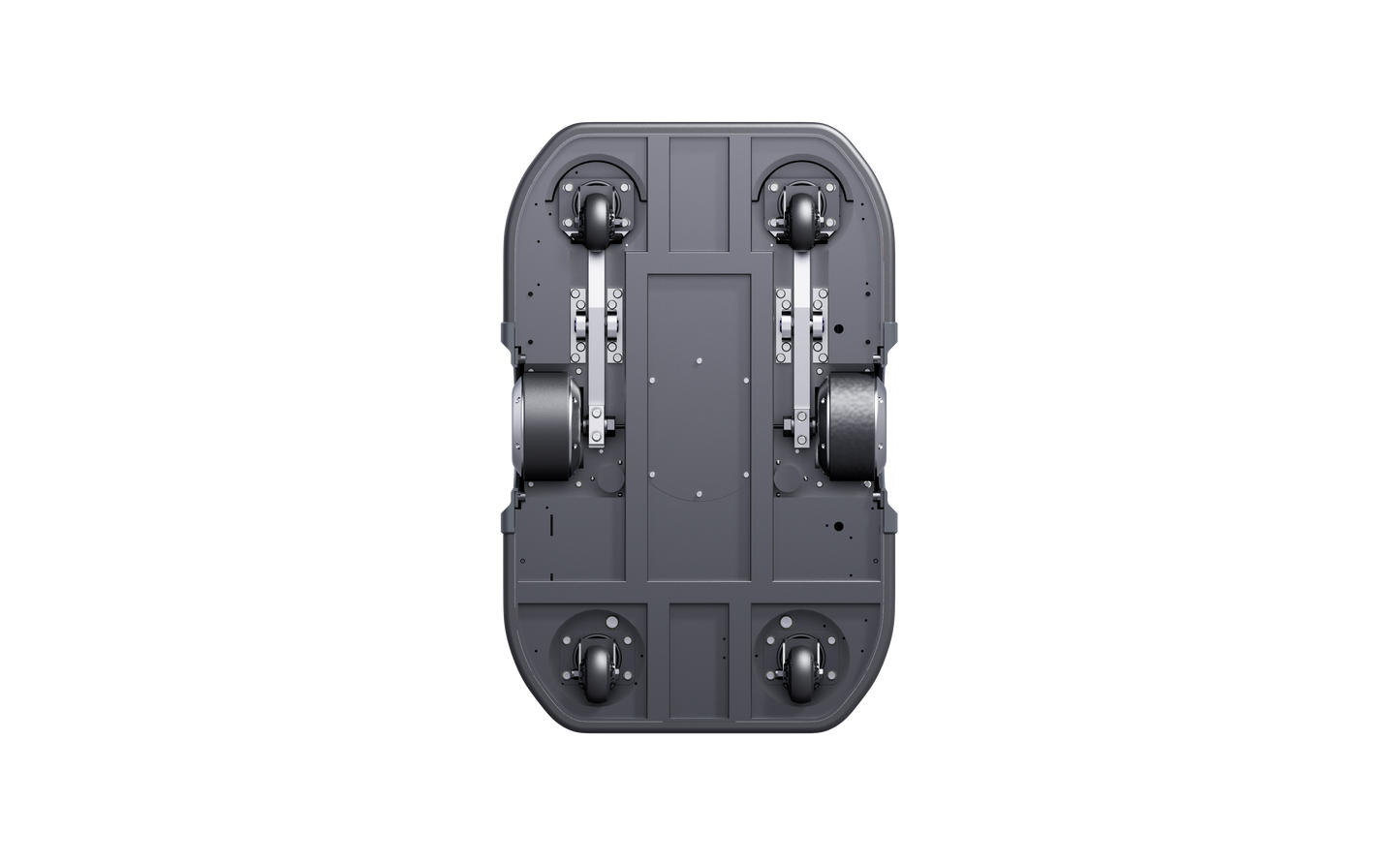

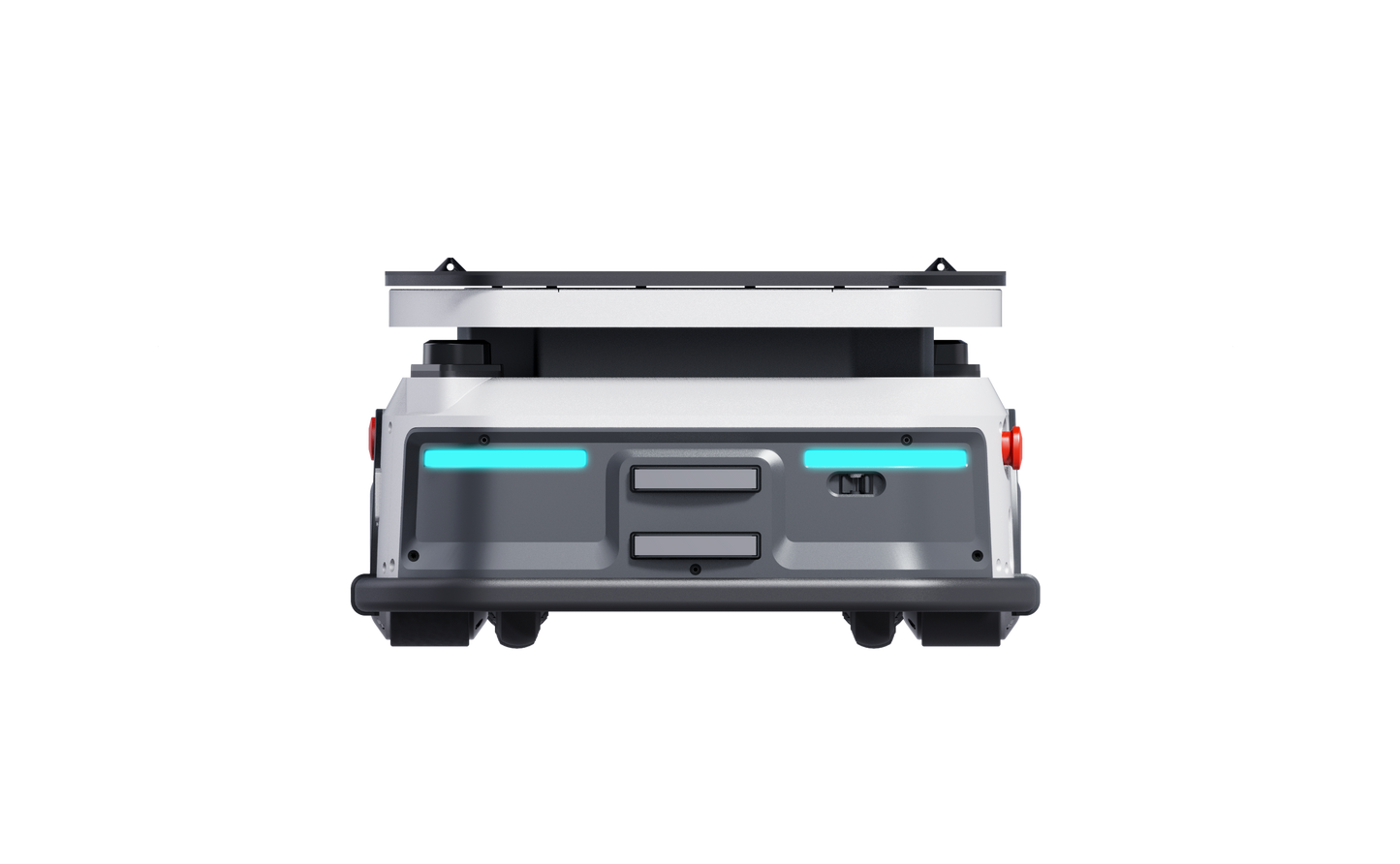

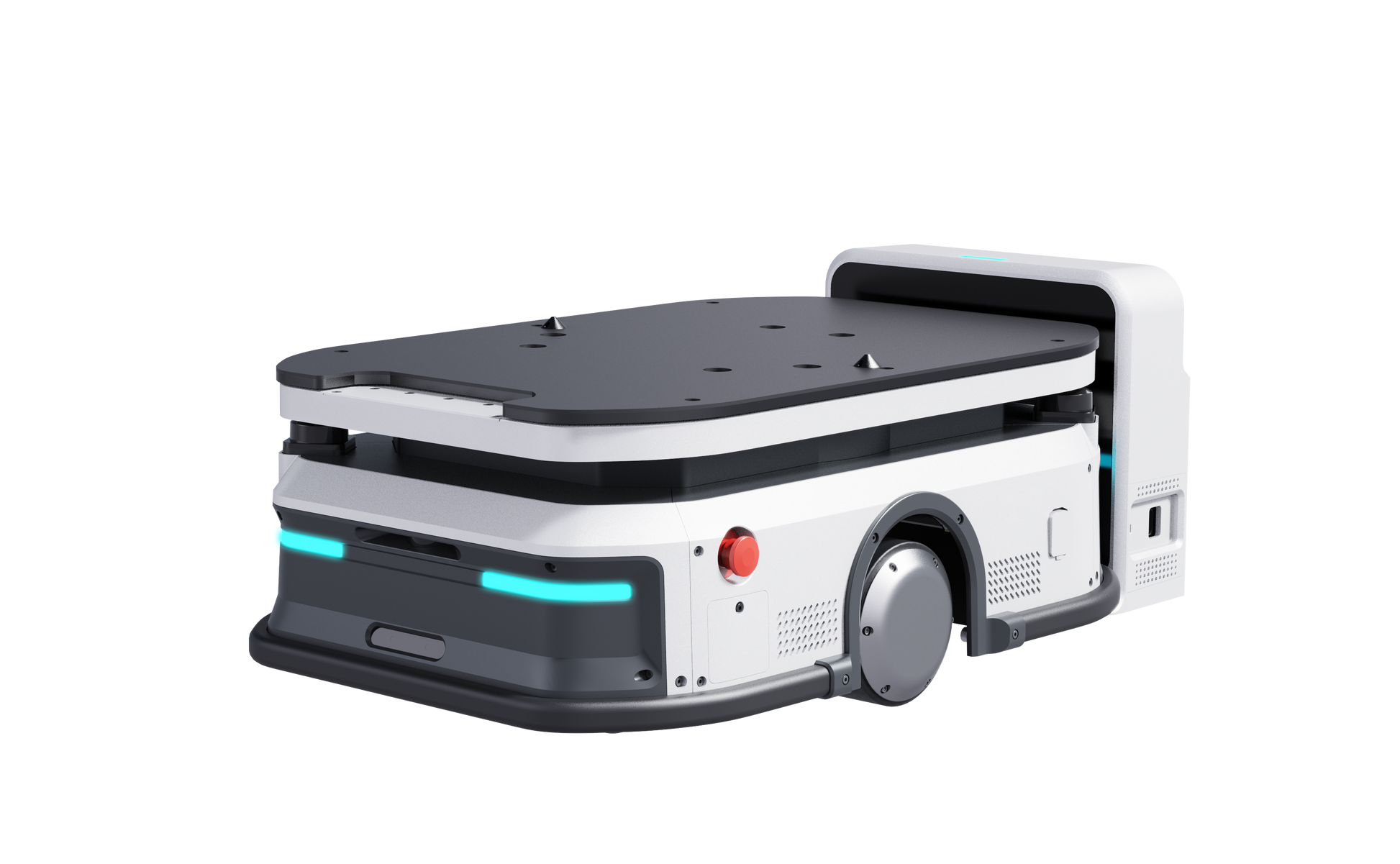

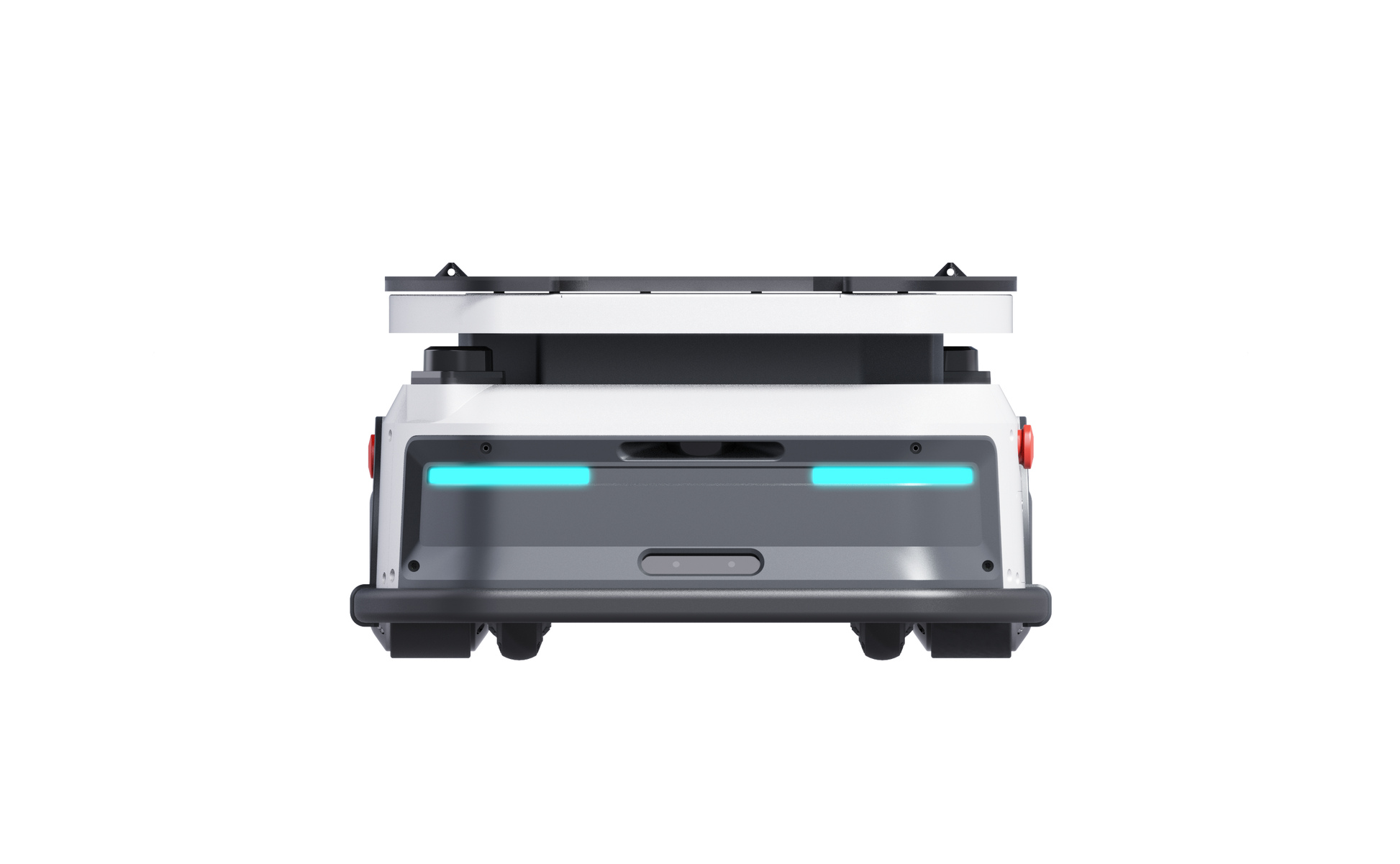

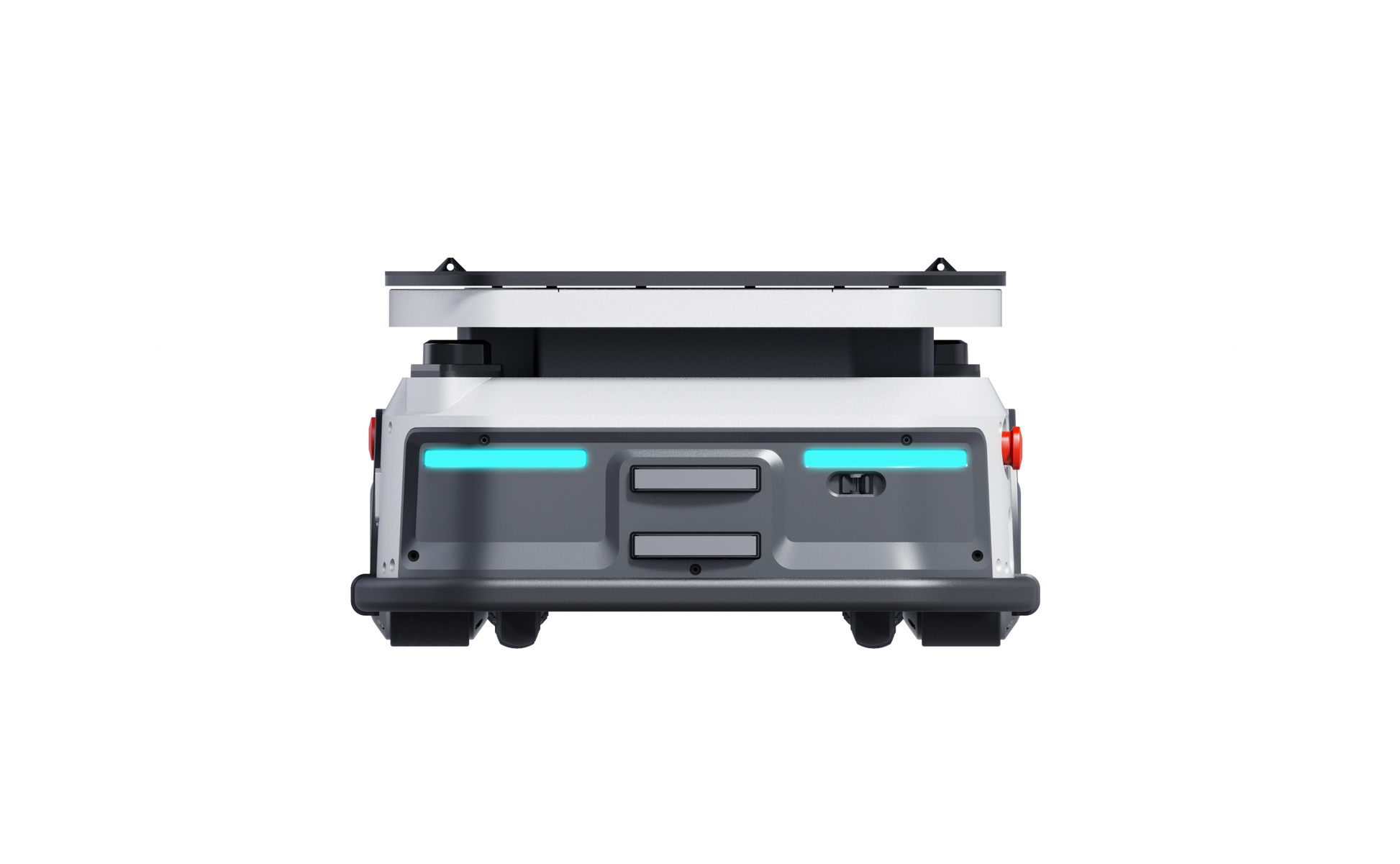

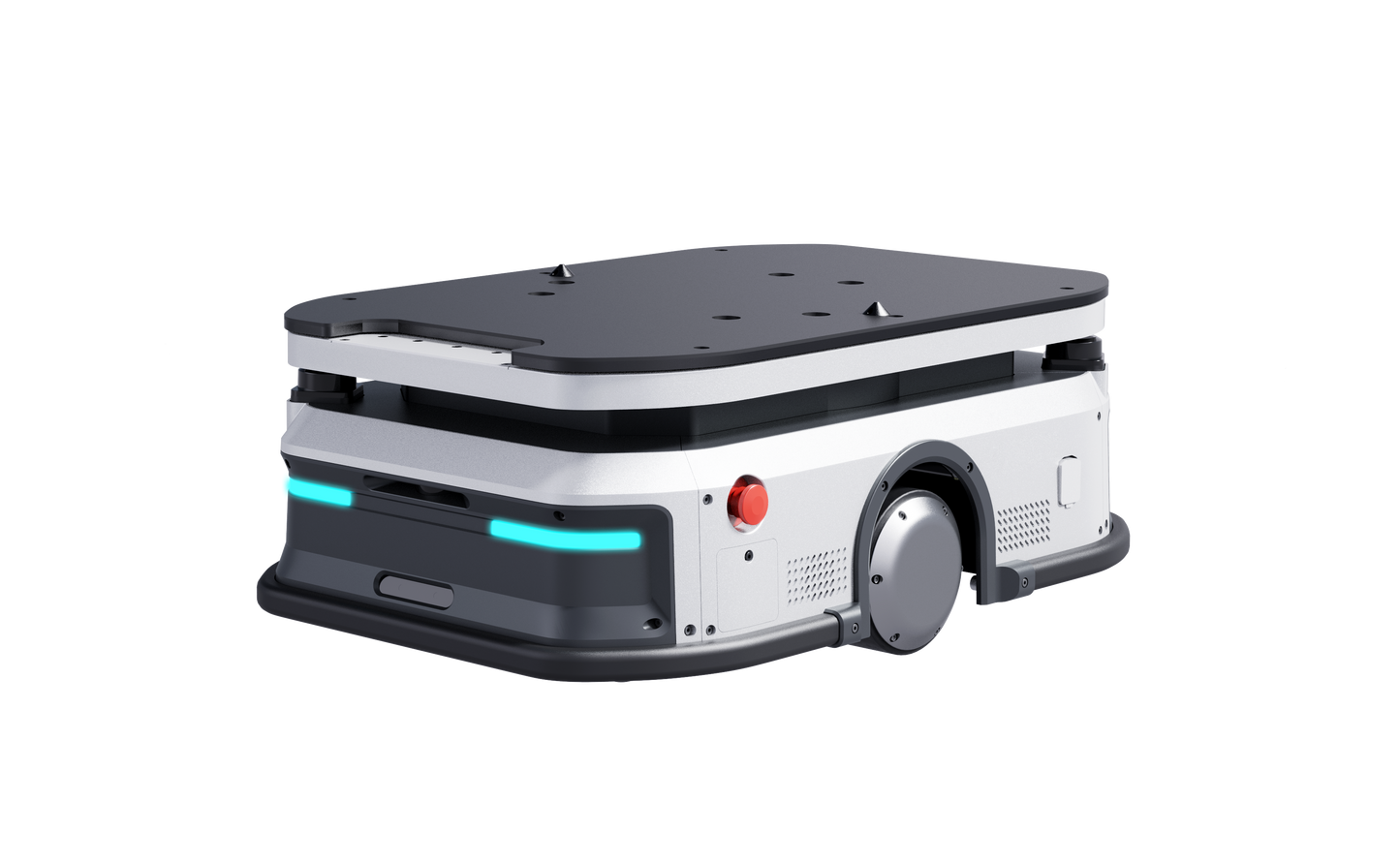

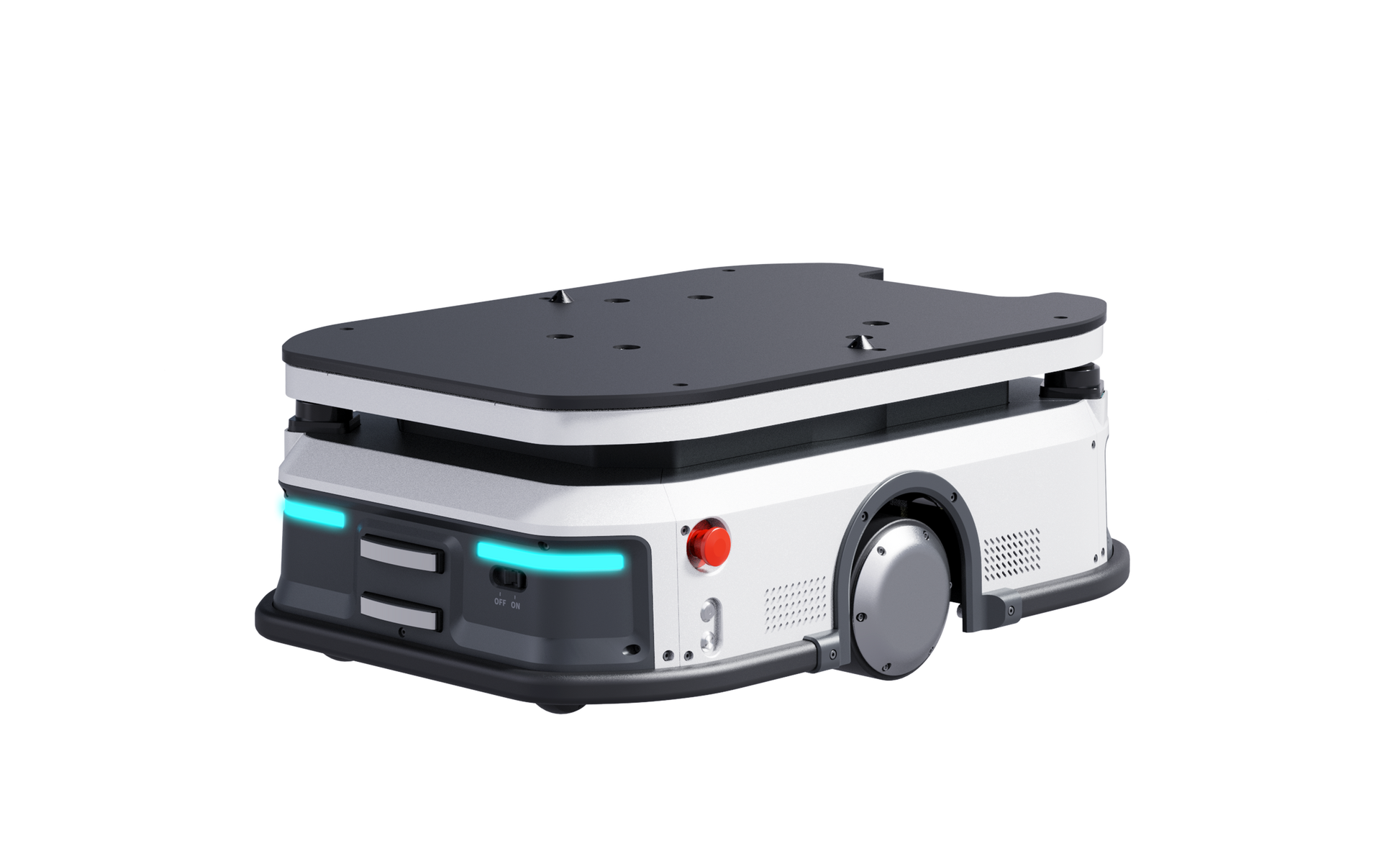

Phoebus P4M11
Phoebus P4M11
Couldn't load pickup availability
Product Description
Phoebus is a scalable industrial delivery robot platform, designed for small to medium-sized factories. It provides efficient, simple, and reliable automated smart industrial transport solutions, helping end-users improve production processes, enhance productivity, and achieve intelligent transformation and upgrades.
Specification
|
Specification |
Value |
|

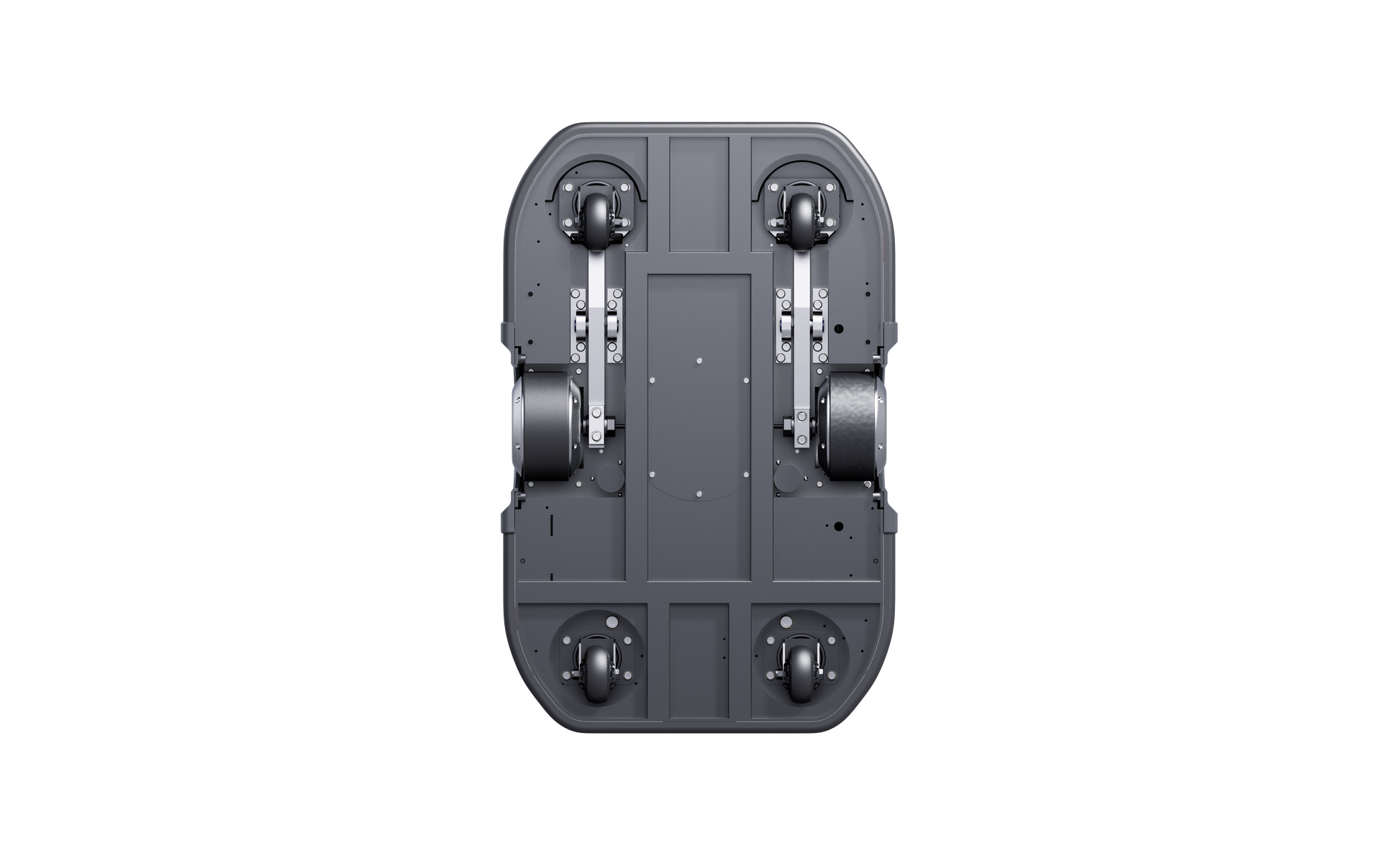

Chassis Dimensions (L×W×H) |
780mm × 506mm × 270mm |
|
Rotation Diameter |
840mm |
|
Ground Clearance |
25mm |
|
Net Weight |
105kg |
|
Rated Load |
250kg |
|
Maximum Load |
300kg (on flat cement surfaces) |
Mapping Performance
|
Specification |
Value |
|
Map Resolution |
5cm (configurable to 1.5cm) |
|
Maximum Single Map Area |
500m × 500m (5cm), 300m × 300m (1.5cm) |
Motion Parameters
|
Specification |
Value |
|
Max Lifting Height |
60mm |
|
Min Lifting Time |
4 seconds |
|
Max Speed (Unloaded) |
1.5 m/s |
|
Max Speed (Fully Loaded) |
1.2 m/s |
|
Rotational Speed |
90°/2s, 180°/3s |
|
Minimum Passage Width |
600mm |
|
Obstacle Crossing Capability |
5° slope, 20mm step, 40mm gap |
|
Navigation Accuracy |
±4cm, ±2° |
|
Endpoint Localization Accuracy |
±1cm, ±1° |
Hardware Interface
|
Component |
Details |
|
User Power Supply |
DC 12V 5A |
|
Circuit Breaker |
1 |
|
Power Button |
1 |
|
Brake Release Button |
1 |
|
Emergency Stop Button |
2 |
|
Ethernet Port |
1×RJ45 Gigabit |
Wireless Interface
|
Feature |
Details |
|
Wi-Fi |
2.4GHz / 5GHz |
|
4G |
Optional |
|
Bluetooth |
BT4.0, Dual Mode |
|
LoRa |
433 / 868 / 920 MHz |
Software Interface
|
Feature |
Details |
|
Platform |
SLAMWARE™ |
|
SDK/API |
SLAMWARE™ SDK 2.0 (HTTP API) |
|
Platform Support |
Windows, iOS, Android, Linux |
Battery & Charging
|
Specification |
Value |
|
Battery Type |
24V 29.4AH LiFePO4 |
|
Run Time (Full Load) |
12 hours |
|
Charging Time |
3 hours |
|
Battery Life |
2000 cycles (80% capacity) |
|
Charging Mode |
Manual / Automatic |
Power Consumption
|
Mode |
Power |
|
Standby |
29.5W |
|
Fully Loaded |
55W |
|
Max External Load |
280W |
Environment
|
Specification |
Range |
|
Operating Temperature |
0℃ – 45℃ |
|
Operating Humidity |
10 – 95% (non-condensing) |
|
Operating Altitude |
≤2000m |
|
Storage Temperature |
-25℃ – 55℃ |
Application
· Intelligent Inspection
· Smart Retail Solution
· Automated Material handling for Production Lines

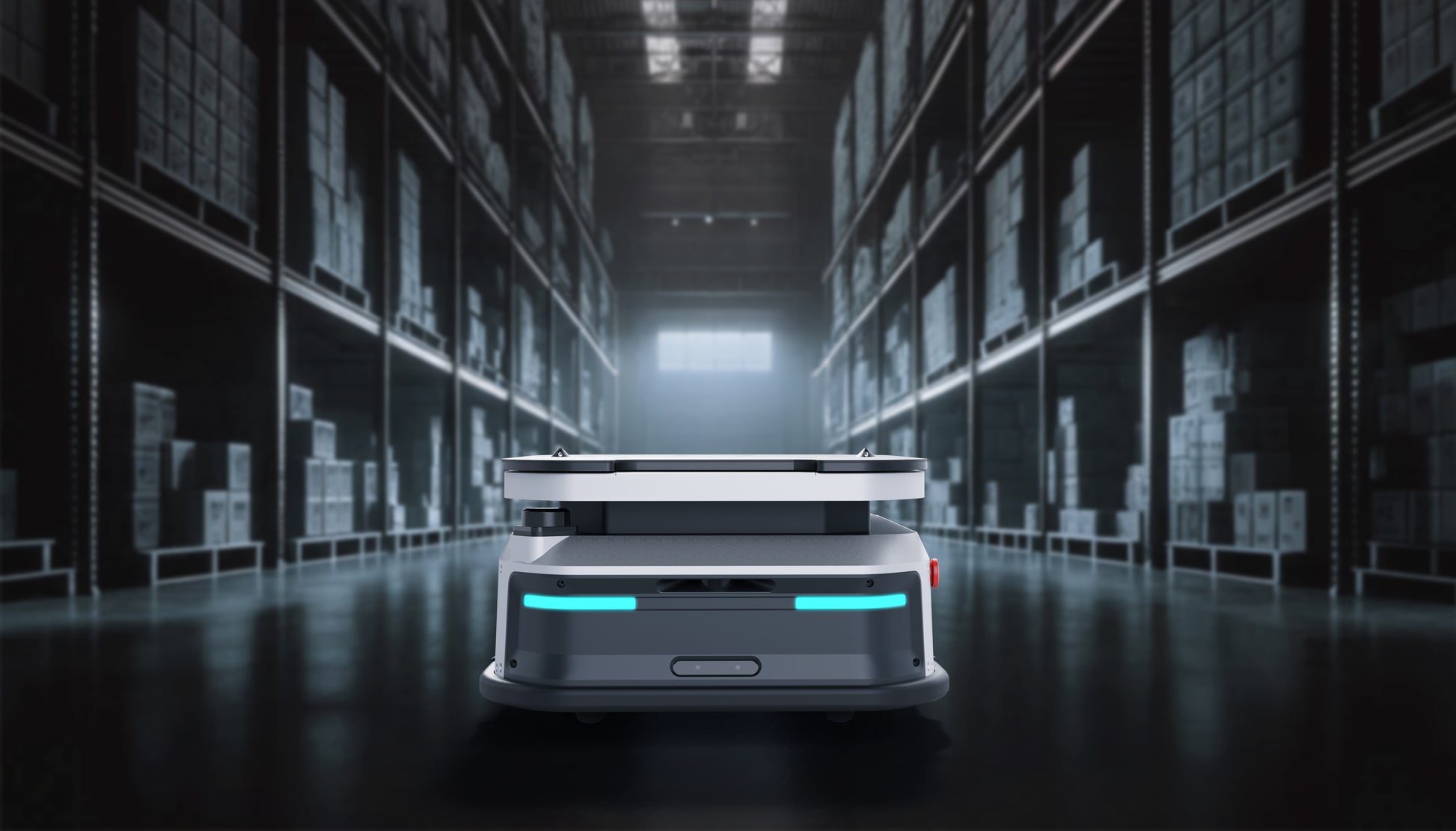

· Warehouse Management System
· Hybrid Collaborative Robots
· Intelligent Healthcare Robotics
Component Included
1 x Phoebus P4M11
